Water Storage Solutions

Ut possimus qui ut temporibus culpa velit eveniet modi omnis est adipisci expedita at voluptas atque vitae autem.

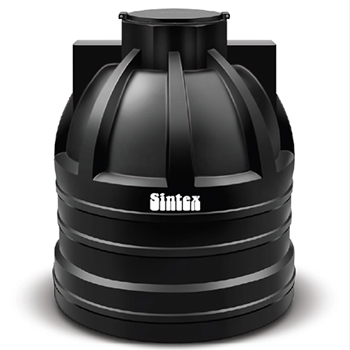

SINTEX UNDERGROUND WATER TANKS (SUMPS)

FEATURES:
One-piece moulded without any joints, seams or welds
Rustproof and leak-proof
Hygienic and suitable for potable water
Computerised design for excellent strength
Lightweight and easy to transport
Easy to install
Durable and economical
100% virgin material
Non-porous and does not allow the water to get contaminated
Range & Specifications
Code No: Capacity
(L) 		Diameter
(mm) 		Length(mm) Diameter of manhole
(mm)
CCWS-50.01 500 1030 755 400
CCWS-50.02 500 900 970 465
CCWS-70.01 700 1035 1083 406
CCWS-75.01 750 1030 1100 413
CCWS-100.01 1000 1105 1240 407
CCWS-150.01 1500 1350 1290 410
CCWS-200.01 2000 1350 1615 410
CCWS-200.02 2000 1400 1560 520
CCWS-250.01 2500 1500 1720 515
CCWS-300.01 3000 1500 2000 520
CCWS-500.01 5000 2000 1890 520
CCWS-500.02 5000 1800 2200 400
CCWS-750.01 7500 2000 2880 520
CCWS-1000.02 10000 2500 2510 520
CCWS-1000.03 10000 2125 3140 520
CCWS-1500.01 15000 2550 3580 522
CCWS-1500.02 15000 3000 2810 510
CCWS-2000.01 20000 2580 4600 510
CCWS-2000.02 20000 3000 3390 522
CCWS-2500.01 25000 3050 4070 510

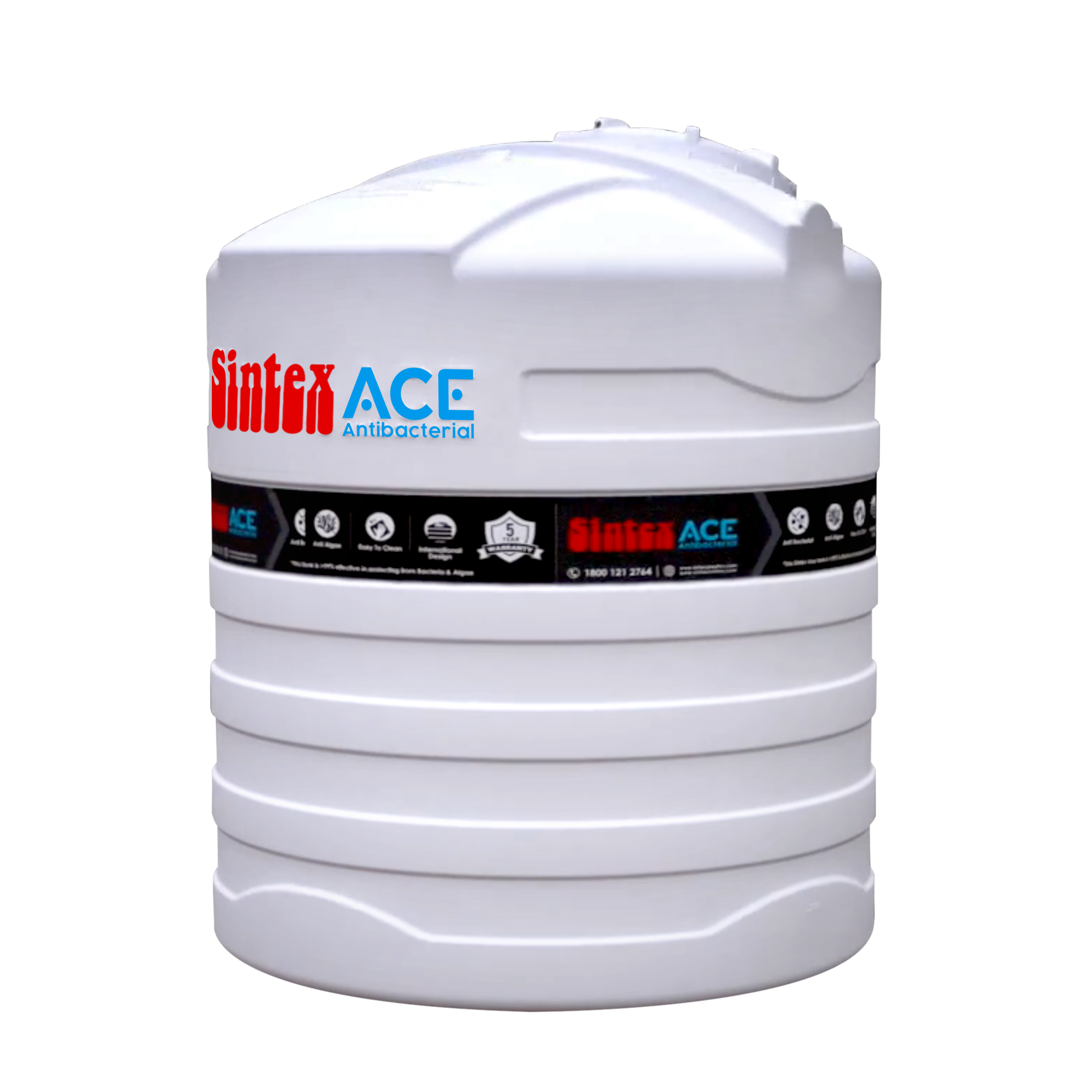

SINTEX ACE ANTIBACTERIAL

FEATURES:
>99%* effective in protecting from harmful Bacteria and Algae
100% Virgin Plastic: For better strength, durability & flexibility.
Food Grade Plastic with FDA Approval: Ensures safety & hygiene of stored water
Phthalate-Free Granules & Additives: No cancer-causing materials are present.
100% UV Stabilized Tank and Lid: Sun rays cannot reach the water, no algae formation.
Threaded Lid: Heavy winds, birds, and animals cannot open the lid, thus maintaining safety & hygiene.
Two Layers: Outer (White) and Inner (Grey) to see the water level easily and for UV protection.
Roto Moulding Manufacturing Process: Provides flexibility to take care of cyclical expansion and contraction due to temperature changes and filling/refilling of the tank.
Range & Specifications
Code No. Capacity
(L)		 Diameter
(mm)		 Height
(mm)		 Diameter of manhole
(mm)
HSWS-0050-01-ACE 500 920 995 405
HSWS-0075-01-ACE 750 1030 1130 405
HSWS-0100-01-ACE 1000 1100 1310 405
HSWS-0200-01-ACE 2000 1350 1685 405
HSWS-0500-01-ACE 5000 2000 1980 405

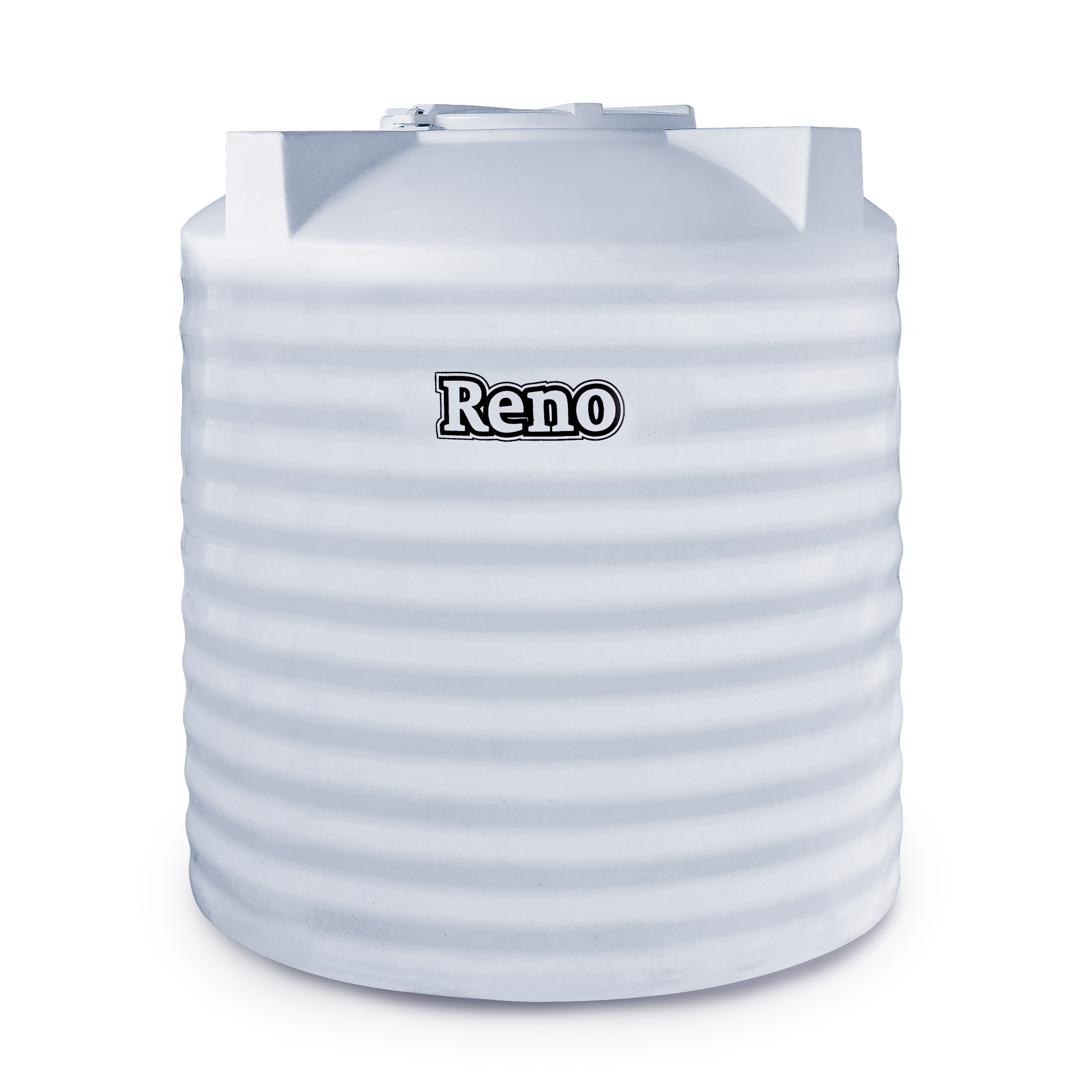

SINTEX RENO

FEATURES:
100% Virgin Plastice
Food Grade Plastic with FDA Approval
Phthalate-Free Granules & Additives
100% UV Stabilized Tank and Lid
Two Layers
Roto Moulding Manufacturing Process
Multi-Ribbed Design
Range & Specifications
Code No. Capacity
(L)		 Diameter
(mm)		 Height
(mm)		 Diameter of manhole
(mm)
WSCC-0050-01-RENO-WHITE 500 900 875 400
WSCC-0070-01-RENO-WHITE 700 900 1195 400
WSCC-0100-01-RENO-WHITE 1000 1110 1170 406
WSCC-0150-01-RENO-WHITE 1500 1365 1155 400
WSCC-0200-01-RENO-WHITE 2000 1365 1515 407
WSCC-0250-01-RENO-WHITE 2500 1365 1875 400
WSCC-0300-01-RENO-WHITE 3000 1500 1875 400
WSCC-0500-01-RENO-WHITE 5000 1800 2175 510
WSCC-1000-01-RENO-WHITE 10000 2130 3155 510

Note: All Dimensions are in mm with process variation of +2.5%

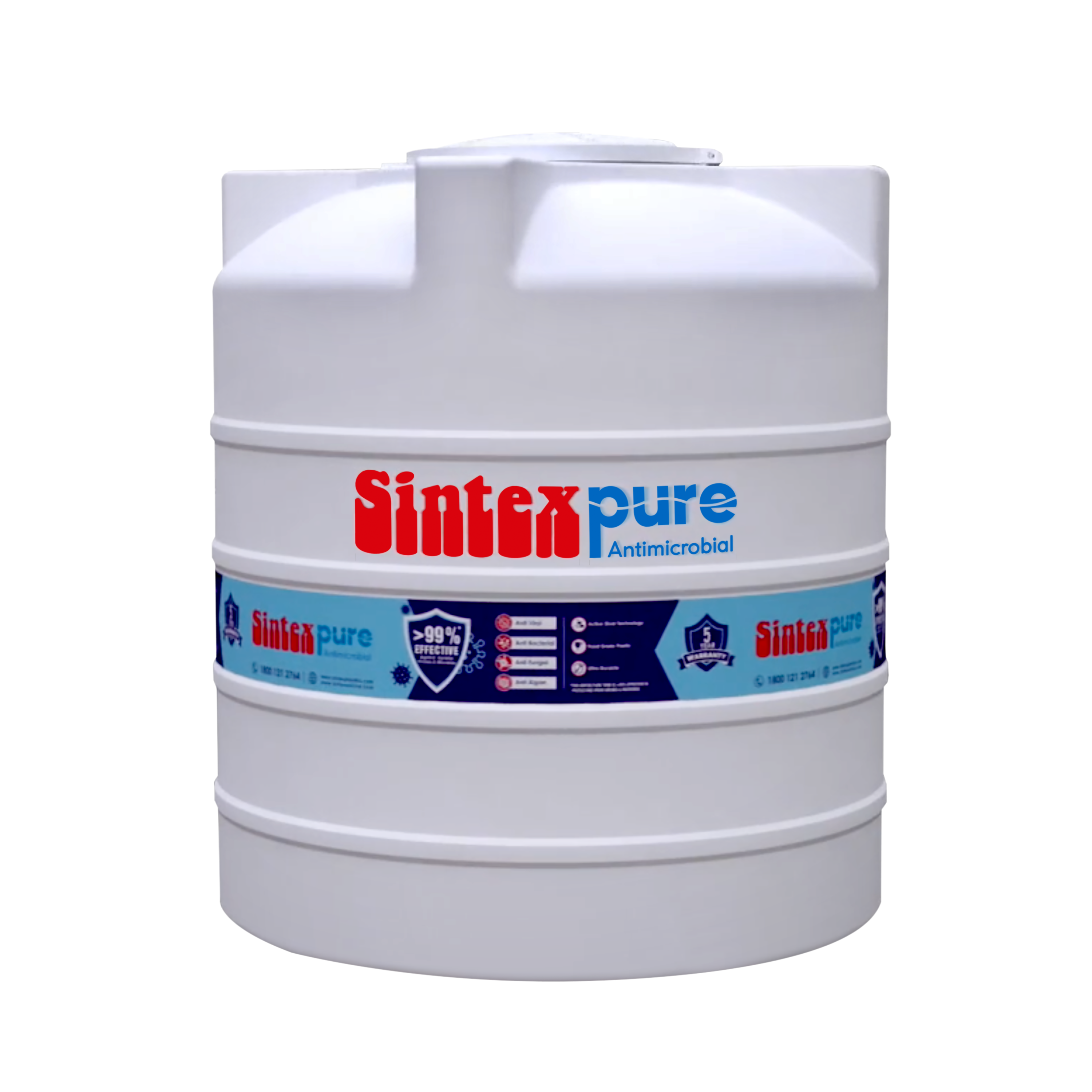

SINTEX PURE ANTIMICROBIAL

ANTIMICROBIAL INNOVATION WITH ACTIVE SILVER TECHNOLOGY

FEATURES:

UNMATCHED FEATURES, UNIQUE BENEFITS

>99%* Effective Against Harmful Viruses & Microbes
100% Virgin Plastic: For better strength, durability & flexibility.
Food Grade Plastic with FDA Approval: Ensures safety & hygiene of stored water.
Phthalate-Free Granules & Additives: No cancer-causing materials are present.
100% UV Stabilized Tank and Main-layered Lid: Sun rays cannot reach the water, no algae formation.
Multiple Layers: Outer (White/Colour) for aesthetic looks, Middle (Black) for UV protection, and Inner (Blue/Grey) to see the water level.
Roto Moulding Manufacturing Process: Provides flexibility to take care of cyclical expansion and contraction due to temperature changes and filling/refilling of the tank.
Aesthetic Looks
Multi-Ribbed Design: Ensures long-lasting strength & durability.
Colour Options: Available in White, Blue, Green & Yellow.
Range & Specifications
Code No. Capacity
(L)		 Diameter
(mm)		 Height
(mm)		 Diameter of manhole
(mm)
HSWS-0050-02-PURE 500 900 970 465
HSWS-0075-01-PURE 750 1030 1100 413
HSWS-0100-01-PURE 1000 1105 1240 407
HSWS-0150-01-PURE 1500 1350 1290 410
HSWS-0200-01-PURE 2000 1350 1615 410
HSWS-0300-01-PURE 3000 1500 2000 520
HSWS-0500-01-PURE 5000 2000 1890 520
HSWS-1000-03-PURE 10000 2125 3140 520

Note: All Dimensions are in mm with process variation of +2.5%

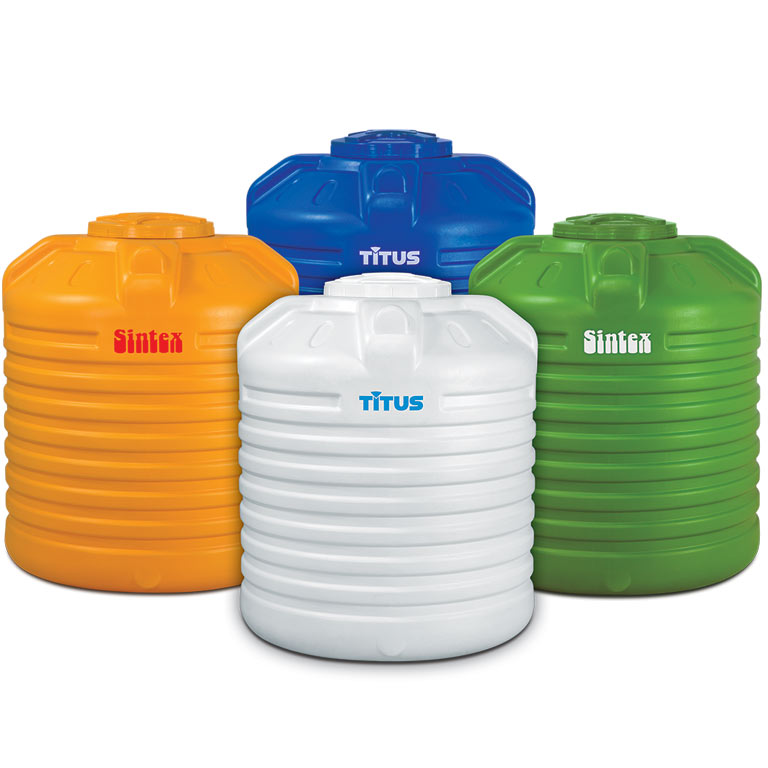

TITUS WATER TANK

FEATURES:
A multilayer tank
100% UV stabilised
Most modern design
Threaded lid
Extra insert lid – For algae formation protection
100% virgin material
Extra packing for product safety
Food Grade material (FDA), for hygienic water
Available size 500, 1000, 1500 and 2000 Ltrs
Range & Specifications
Product Code Capacity (L) Diameter (mm) Height(mm) Diameter of manhole (mm)
CCTS-0050-01 500 920 875 450
CCTS-0075-01 750 1030 1065 450
CCTS-0100-01 1000 1100 1220 450
CCTS-0150-01 1500 1350 1225 450
CCTS-0200-01 2000 1350 1600 450

Note: All Dimensions are in mm with process variation of +2.5%

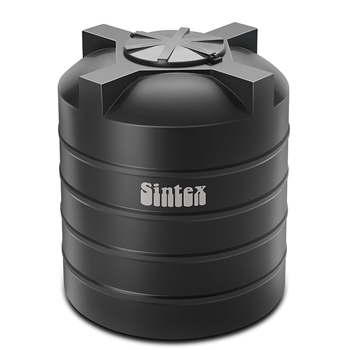

SINTEX BLACK WATER TANKS

FEATURES:
Lightweight and durable
Maintenance-free
Rustproof and Hygienic
Range & Specifications
Code No: Capacity
(L) 		Diameter
(mm) 		Length(mm) Diameter of manhole
(mm)
CCWS-50.01 500 1030 755 400
CCWS-50.02 500 900 970 465
CCWS-70.01 700 1035 1083 406
CCWS-75.01 750 1030 1100 413
CCWS-100.01 1000 1105 1240 407
CCWS-150.01 1500 1350 1290 410
CCWS-200.01 2000 1350 1615 410
CCWS-200.02 2000 1400 1560 520
CCWS-250.01 2500 1500 1720 515
CCWS-300.01 3000 1500 2000 520
CCWS-500.01 5000 2000 1890 520
CCWS-500.02 5000 1800 2200 400
CCWS-750.01 7500 2000 2880 520
CCWS-1000.02 10000 2500 2510 520
CCWS-1000.03 10000 2125 3140 520
CCWS-1500.01 15000 2550 3580 522
CCWS-1500.02 15000 3000 2810 510
CCWS-2000.01 20000 2580 4600 510
CCWS-2000.02 20000 3000 3390 522
CCWS-2500.01 25000 3050 4070 510

Note: All Dimensions are in mm with process variation of +2.5%
